M5Stack StampS3 for embedded ESP32 test fixtures

Use the M5Stack StampS3 when the Bit Pirate target needs to fit into a compact fixture or custom carrier. It works well for embedded fixtures, exposed-pin tests and projects where the Bit Pirate target must stay tiny.

tiny integration
Flash StampS3 firmwareCompare boards

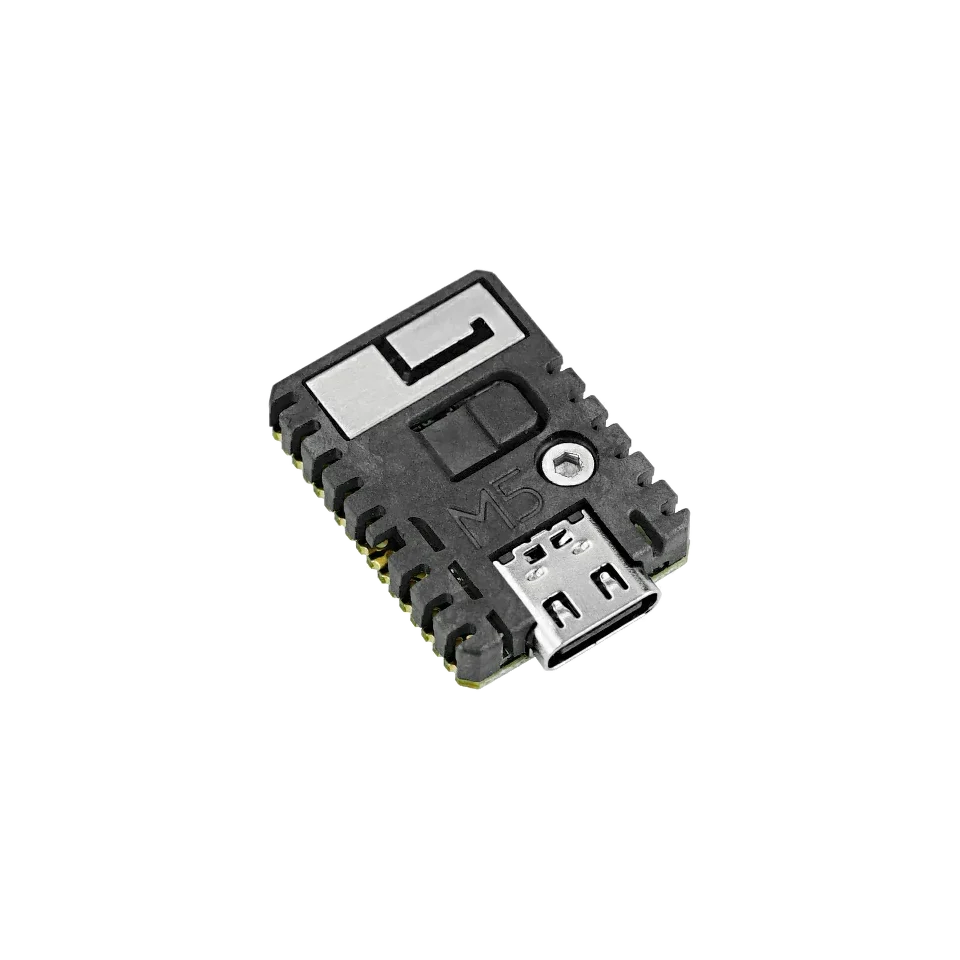

M5Stack StampS3 board.

Board-specific guide for M5Stack StampS3 firmware, compact fixtures, exposed pins and ESP32-S3 debugging workflows.

compatibility

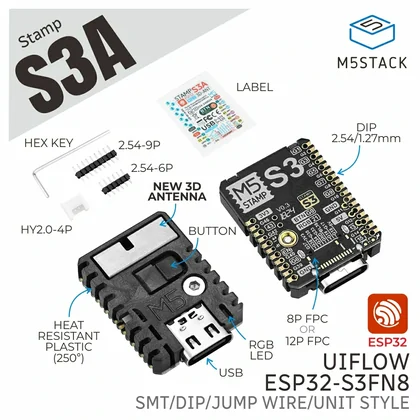

StampS3 board overview

Use this page to judge StampS3 for embedded fixtures, carrier boards and compact ESP32 Bit Pirate wiring.

TypeSmall ESP32-S3 integration module.
Onboard hardwareCompact module intended for carrier or fixture integration.
Exposed GPIO9 GPIO through exposed pins and 1 button in the hardware table.
FirmwareDedicated StampS3 manifest in the Web Flasher.

practical tasks

StampS3 supported workflows

StampS3 fits embedded fixtures and carrier-board workflows where UART, I2C, SPI or GPIO access is planned into the hardware.

Embedded serial helper

Build a small UART or AT-console fixture around the module.

I2C/SPI adapters

Use the carrier or breakout to route bus pins deliberately.

GPIO automation

Pulse, listen and measure through the pins exposed by the carrier or harness.

Custom fixtures

Use Bit Pirate commands in a repeatable hardware harness.

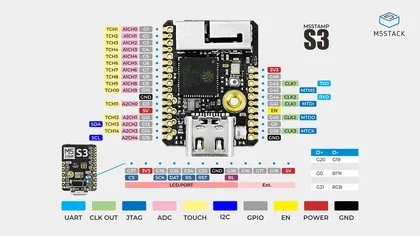

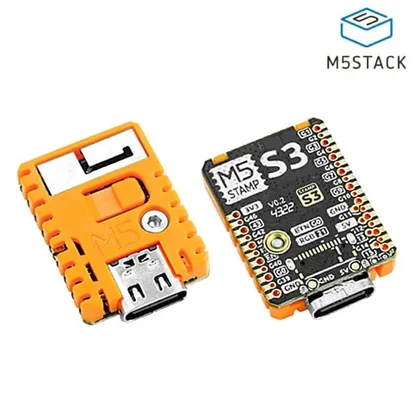

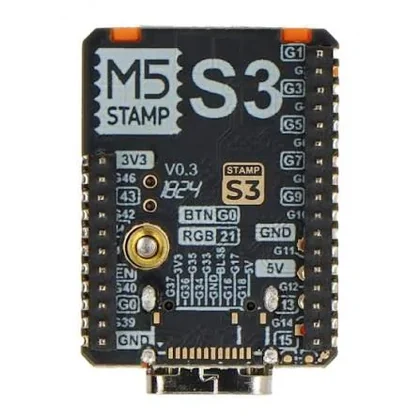

StampS3 pin mapping and wiring notes

Pin availability depends heavily on the carrier or breakout. The wiki lists exposed StampS3 pins as GPIO1/GPIO3/GPIO5/GPIO7/GPIO9/GPIO13/GPIO15/GPIO43/GPIO44; confirm the exact carrier wiring and do not assume a generic ESP32-S3 header layout.

Always verify voltage and pin mapping before connecting a target. The ESP32-S3 side is not 5 V tolerant unless external level shifting or the Dock path is used correctly.

useful pages

StampS3 useful next pages

Jump from StampS3 to fixture-friendly protocol pages, recipes and hardware references.

Protocol modes

UART

Open the protocol overview before choosing pins and commands.

I2C

Open the protocol overview before choosing pins and commands.

SPI

Open the protocol overview before choosing pins and commands.

DIO/GPIO

Open the protocol overview before choosing pins and commands.

Useful recipes

Choose GPIO pinout before wiring

Use the task guide for wiring, commands and troubleshooting.

Bridge UART console

Use the task guide for wiring, commands and troubleshooting.

Scan unknown I2C device

Use the task guide for wiring, commands and troubleshooting.

Read SPI flash JEDEC ID

Use the task guide for wiring, commands and troubleshooting.

Tools and hardware

Web Serial Terminal

Open Web Serial for StampS3 CLI sessions after flashing.

Web Flasher

Flash the matching StampS3 build from a compatible browser.

Hardware ecosystem

Check docks, adapters and wiring hardware that pair with StampS3.

Modules and target chips

Browse chips and breakout modules that make sense with StampS3 wiring.

board-specific answers

StampS3 FAQ

Quick StampS3 answers about fixture use, carrier wiring, firmware support and practical GPIO access.

Is StampS3 a good first board?

It can be, but ESP32-S3 DevKit is easier if you want labeled headers, Dock wiring or many simultaneous target signals.

Why use StampS3 with ESP32 Bit Pirate?

Use it when the debugging tool must be tiny or embedded into another fixture.

Can StampS3 be embedded into a custom fixture?

Yes. StampS3 is useful inside compact test fixtures; expose power, UART and target pins on the carrier, and keep boot/reset access and safe logic levels available.

Can it use browser tools?

Yes, once flashed and connected through a compatible USB serial path.

Is it good for Dock use?

The Dock is centered on DevKit-style boards, so StampS3 is more of an integration target than the reference Dock target.

source project

StampS3 in the ESP32 Bit Pirate ecosystem

ESP32 Bit Pirate on StampS3 is aimed at embedded fixtures, compact carriers and wiring jobs where the module becomes part of the test setup.
