T-Embed S3 ESP32 firmware, wiring and pinout

Use the T-Embed S3 as a display-based ESP32-S3 bench target with encoder, screen, SD and Grove/Header access. It fits display-assisted serial, I2C, SPI and field workflows when the encoder, screen and onboard storage are useful.

display bench
Flash T-Embed firmwareCompare boards

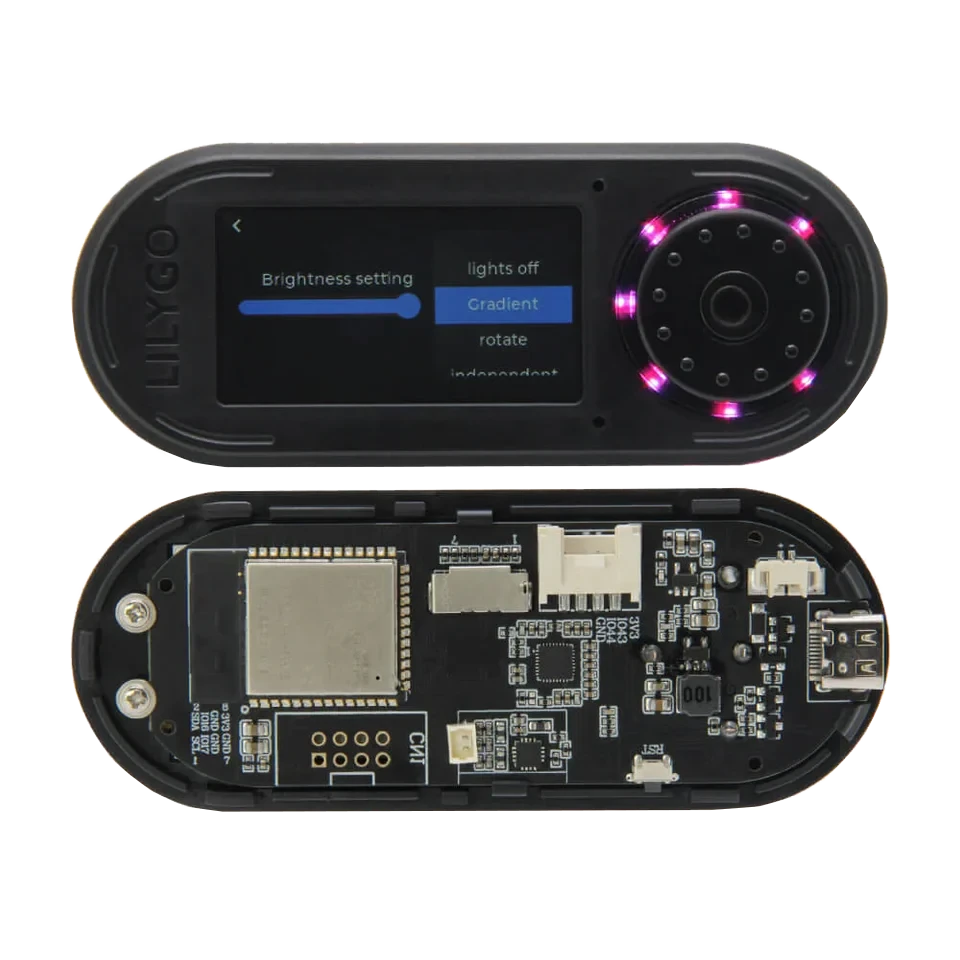

LILYGO T-Embed S3 ESP32-S3 board with display, encoder and connector access.

Board-specific guide for T-Embed S3 firmware, display-based workflows, wiring notes and ESP32-S3 hardware tools.

wiring references

Four wiring references for T-Embed S3 pinout checks, kit headers, PCB dimensions and board orientation.

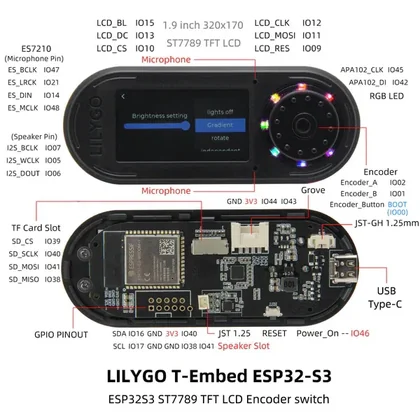

T-Embed S3 pinoutPinout map with Grove, encoder, display, SD, audio and GPIO resources.Source

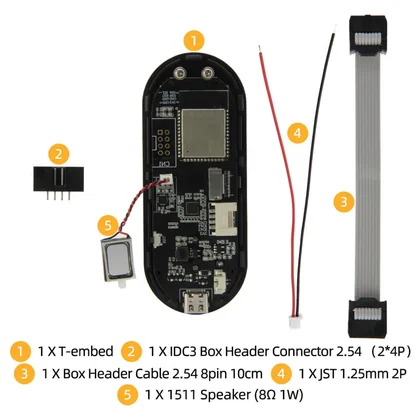

T-Embed S3 kit headersKit photo with IDC3 cable, battery lead and speaker parts.Source

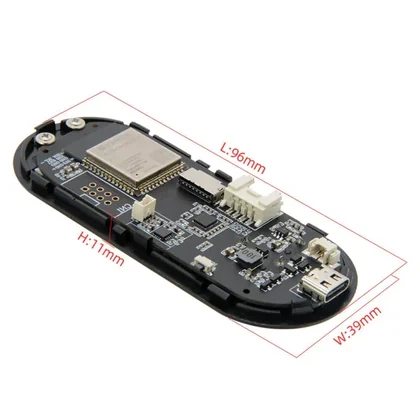

T-Embed S3 dimensionsPCB dimensions photo with expansion connector and board outline.Source
T-Embed S3 board photoBoard photo overview with display side, encoder end and rear PCB.Source

compatibility

T-Embed S3 board overview

Use this page to judge T-Embed S3 for portable connector-based ESP32 Bit Pirate workflows.

TypeDisplay-oriented ESP32-S3 handheld board.
Onboard hardwareScreen, encoder, speaker, microphone, SD card and Grove/Header access.
Exposed GPIO9 GPIO through Grove/Header according to the hardware table.
FirmwareDedicated T-Embed S3 manifest in the Web Flasher.

practical tasks

T-Embed S3 supported workflows

T-Embed S3 supports connector-based UART, I2C, SPI and GPIO checks with display feedback for portable bench sessions.

UART and Web Serial

Run CLI sessions, serial console checks and browser terminal workflows.

I2C over connectors

Use Grove/Header access for sensors, EEPROMs and external modules.

SPI and DIO checks

Probe SPI devices and exercise pins when the selected mapping exposes the needed signals.

Display feedback

Use onboard display feedback for visible state during bench workflows.

T-Embed S3 pin mapping and wiring notes

Keep display, encoder, audio and SD-related pins reserved. Use Grove/Header pins for targets and prefer DevKit or Dock when many unconstrained GPIO are required.

Always verify voltage and pin mapping before connecting a target. The ESP32-S3 side is not 5 V tolerant unless external level shifting or the Dock path is used correctly.

useful pages

T-Embed S3 useful next pages

Jump from T-Embed S3 to connector-oriented protocol, recipe and browser-tool pages.

Protocol modes

UART

Open the protocol overview before choosing pins and commands.

I2C

Open the protocol overview before choosing pins and commands.

SPI

Open the protocol overview before choosing pins and commands.

DIO/GPIO

Open the protocol overview before choosing pins and commands.

Useful recipes

First serial connection firmware

Use the task guide for wiring, commands and troubleshooting.

Scan unknown I2C device

Use the task guide for wiring, commands and troubleshooting.

Read SPI flash JEDEC ID

Use the task guide for wiring, commands and troubleshooting.

Check logic levels before wiring

Use the task guide for wiring, commands and troubleshooting.

Tools and hardware

Web Serial Terminal

Open Web Serial for T-Embed S3 CLI sessions after flashing.

Web Flasher

Flash the matching T-Embed S3 build from a compatible browser.

Hardware ecosystem

Check docks, adapters and wiring hardware that pair with T-Embed S3.

Modules and target chips

Browse chips and breakout modules that make sense with T-Embed S3 wiring.

board-specific answers

T-Embed S3 FAQ

Quick T-Embed S3 answers about connectors, display hardware, Web Serial and external module wiring.

Is T-Embed S3 different from T-Embed CC1101?

Yes. Use this page for the plain T-Embed S3 board. Use the T-Embed CC1101 page when the integrated Sub-GHz radio matters.

Is it good for generic GPIO work?

It is good for moderate connector-based workflows, while ESP32-S3 DevKit remains cleaner for labeled headers, Dock wiring and many simultaneous signals.

Can I use Web Serial with it?

Yes. Flash the matching build and open the Web Serial Terminal for CLI workflows.

Does it support Sub-GHz without the CC1101 variant?

Not through an integrated radio. Use an external CC1101 module or the T-Embed CC1101 board.

What should I check before wiring?

Confirm which pins are used by display, SD, audio and encoder hardware before connecting a target.

How do I enter download mode?

With USB connected, hold the encoder's center button, press and release RESET, then release the center button.

source project

T-Embed S3 in the ESP32 Bit Pirate ecosystem

ESP32 Bit Pirate on T-Embed S3 uses the display, controls and connectors for portable UART, I2C, SPI and GPIO workflows.
