M5 AtomS3 Lite for compact ESP32 test fixtures

Use the M5 AtomS3 Lite when you need a tiny ESP32-S3 target for Grove/Header workflows, simple GPIO checks and small fixtures. It keeps the Bit Pirate setup compact for quick UART, I2C and GPIO checks where only a few accessible pins are needed.

tiny Grove target
Flash AtomS3 Lite firmwareCompare boards

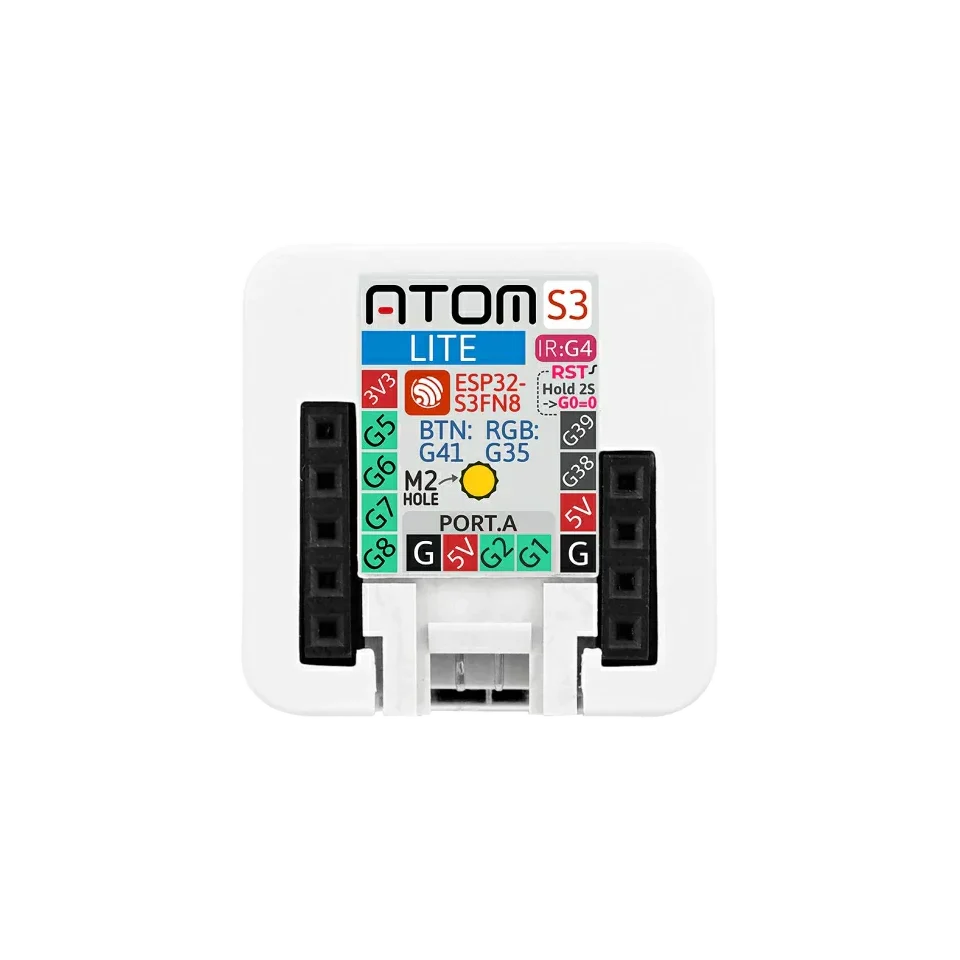

M5 AtomS3 Lite board.

Board-specific guide for M5 AtomS3 Lite firmware, Grove/Header wiring, compact GPIO checks and ESP32-S3 debugging.

compatibility

AtomS3 Lite board overview

Use this page to judge AtomS3 Lite for tiny Grove/Header work, simple GPIO tasks and browser-flashed ESP32 Bit Pirate checks.

TypeTiny ESP32-S3 Grove/Header board.

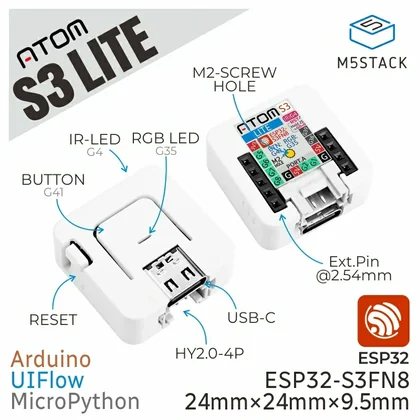

Onboard hardwareCompact board with IR TX and one button.
Exposed GPIO8 GPIO through Grove/Header in the hardware table.
FirmwareDedicated AtomS3 Lite manifest in the Web Flasher.

practical tasks

AtomS3 Lite supported workflows

AtomS3 Lite is best for small Grove/Header workflows, serial access and quick GPIO checks where compact size beats broad pin access.

Serial and Web Serial

Use Web Serial for quick CLI access, UART helper work and compact USB-connected checks.

I2C and SPI modules

Wire Grove/Header modules, memory chips and bus checks when the selected pin mapping exposes the required signals.

DIO/GPIO

Pulse, measure or listen on exposed pins for fixtures, logic checks and simple automation.

IR transmit

Use IR TX workflows where the board mapping supports the task.

AtomS3 Lite pin mapping and wiring notes

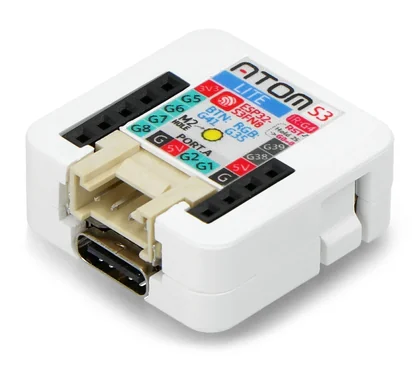

The wiki lists AtomS3 Lite Grove as GPIO1/GPIO2 and onboard GPIOs as GPIO5/GPIO6/GPIO7/GPIO8/GPIO38/GPIO39. Use Grove/Header pins deliberately and keep onboard button, RGB and internal functions in mind before assigning GPIO.

Always verify voltage and pin mapping before connecting a target. The ESP32-S3 side is not 5 V tolerant unless external level shifting or the Dock path is used correctly.

useful pages

AtomS3 Lite useful next pages

Jump from AtomS3 Lite to the protocol pages, recipes and tools that match its Grove/Header wiring.

Protocol modes

UART

Open the protocol overview before choosing pins and commands.

I2C

Open the protocol overview before choosing pins and commands.

DIO/GPIO

Open the protocol overview before choosing pins and commands.

Infrared

Open the protocol overview before choosing pins and commands.

Useful recipes

Scan unknown I2C device

Use the task guide for wiring, commands and troubleshooting.

Pulse GPIO microseconds

Use the task guide for wiring, commands and troubleshooting.

Check logic levels before wiring

Use the task guide for wiring, commands and troubleshooting.

Capture infrared remote

Use the task guide for wiring, commands and troubleshooting.

Tools and hardware

Web Serial Terminal

Open Web Serial for AtomS3 Lite CLI sessions after flashing.

Web Flasher

Flash the matching AtomS3 Lite build from a compatible browser.

Hardware ecosystem

Check docks, adapters and wiring hardware that pair with AtomS3 Lite.

Modules and target chips

Browse chips and breakout modules that make sense with AtomS3 Lite wiring.

board-specific answers

AtomS3 Lite FAQ

Quick AtomS3 Lite answers about support, GPIO limits, Grove/Header wiring and flashing ESP32 Bit Pirate.

Is AtomS3 Lite supported?

Yes. It has a dedicated supported firmware route in the boards section.

What is it best for?

Tiny Grove/Header workflows, simple GPIO checks and compact fixtures.

Is it suitable for complex multi-pin protocols?

Only when the required pins fit. For broad wiring use ESP32-S3 DevKit.

Can it run Web Serial workflows?

Yes after flashing the matching build and connecting from a compatible browser.

Does it have a display?

No. Choose Cardputer, T-Embed or M5StickS3 when visual feedback is important.

source project

AtomS3 Lite in the ESP32 Bit Pirate ecosystem

ESP32 Bit Pirate on AtomS3 Lite focuses on tiny USB-connected checks, Grove/Header wiring, simple GPIO tasks and compact firmware experiments.
